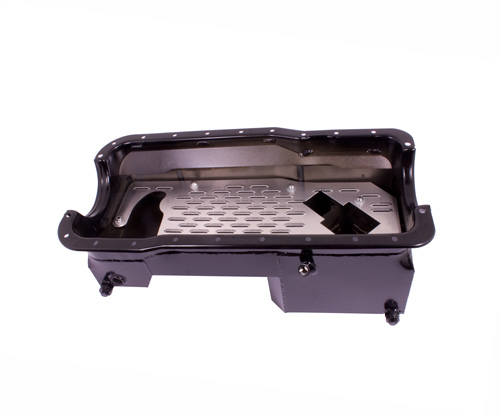

302 DEEP REAR SUMP OIL PAN
M-6675-DRS302
Suggested Retail Price
$514.00
Sold in Units of:
Each (1)

tech notes

Designed by Ford Racing for use on its crate engines, the M-6675-DRS302 oil pan is constructed to deliver power and durability.

Features include:

  • Full length scraper to direct oil away from the crankshaft
  • Full length bolt in louvered windage tray to control oil
  • Baffling and trap doors in the sump to keep the pickup submerged during performance driving
  • 7 quart capacity
  • Rear sump depth is 9.1" – Rear sump width is 8.7" – Front sump depth is 6.7"
  • Includes 3/8" NPT bung to mount an oil temperature sending unit
  • Includes 3/8" NPT access hole to adjust oil pump spring pressure
  • Fits standard 302 Windsor block oil pan bolt pattern
  • Designed to clear 4-bolt main cap Ford Racing BOSS 302 blocks
  • Semi-gloss black powder coat finish
  • Laser cut and TIG welded in precision fixtures for consistent OEM level fit
  • Used on FRPP M-6007-Z363RT  Crate Engine
  • Use pickup M-6622-DRS302
  • See oil pan dimension chart attached below.

specs

Package Dimensions:
9.75 x 17 x 24
Package Weight:
18.5 lbs
Part Type:
Engine: Oil Pumps/Pans
Instruction Sheet:
Not Available
Warranty Availability:
Not Available
Country of Origin:
United States
UPC Code:
756122130490
Catalog Page Number:
0
