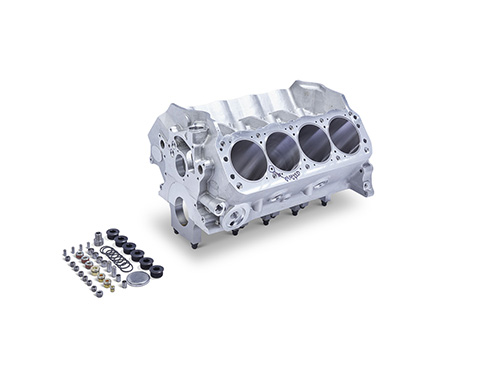

351 ALUMINUM BLOCK 9.5-INCH DECK
M-6010-Z351*
Suggested Retail Price
$3,799.00
Sold in Units of:
Each (1)

tech notes

  • High strength aluminum block, 356-T6 grade aluminum
  • Splayed 4-bolt, steel billet main caps on 2,3 and 4
  • 2-bolt main caps on 1 and 5
  • 4.110"-4.115" bore as delivered, cast iron sleeves 4.125"
  • 9.5-inch; deck height, accepts small block timing chain, timing chain cover and oil pump
  • 2.75-inch crankshaft (351C) main journal diameter. 2.9415-2.9425" diameter finished main bearing bore
  • Lifter bores finished .8753"-.8768"
  • 2.2032-inch - 2.2052-inch diameter cam bearing bores. Uses cam bearings, part number M-6261-J351
  • Maximum stroke 4.250-inch
  • Wet Sump Oiling System
  • Weighs approximately 110 lbs.

specs

Package Dimensions:
22 x 18.75 x 14.5
Package Weight:
146 lbs
Part Type:
Engine: Engine Blocks
Instruction Sheet:
Not Available
Warranty Availability:
Not Available
Country of Origin:
United States
UPC Code:
756122688427
Catalog Page Number:
0
